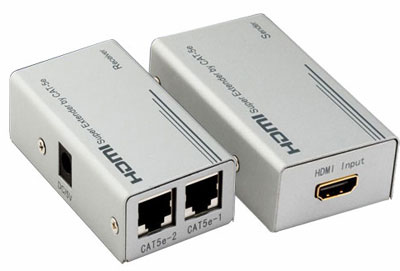

HDMI CAT.5E/6 Extender
partnumber: VHE-1200
The HDMI Extender allows long distance distribution using inexpensive CAT.5e/6 cables. It transmits HDMI with HDCP up to 50M @ 1080p & 60MHz, & 100M @ 1080i & 60MHz.
Features:
- Use CAT.6 cables to achieve long distance transmission.
- Follow the standard of IEEE-568B.
- Transmission distance of up to 50M for 1080p and 100M for 1080i.For general HDMI cables,cables must be customized when the length over 10 meter
- Signal rates up to 2.25Gbits in supporting of 1080p display.
- Support HDMI or DVI inputs.
- HDCP compliant
Specifications:
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Maximum Single Link Range: 1920x1200, 1080p
- Output Video: HDMI 1.2a
- Video format supported DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
- Transmission distance CAT.6 Cable: 50M for 1080p
- Transmission distance CAT.6 Cable: 100M for 480p
- Interlaced (50&60Hz): 480i/576i/1080i
- Progressive (50&60Hz): 480p/576p/720p/1080p
- Operating Temperature: 0 to 70 degree C
- Operating Humidity: 10% to 85% RH (no condensation)
- Storage Temperature: -10 degree C to 80 degree C
- Storage Humidity: 5% to 95% RH (no condensation)
- External Power Supply: 5V DC @2A
|
