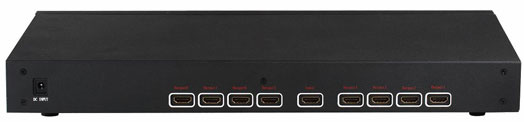

HDMI 8 Port Splitter 1.3 Version
partnumber: VHD-1080
Send a HDMI Source to 8 HDMI Displays!!
The HDMI Splitter allows set-top boxes, DVD players, D-VHS players and other HDTV devices with a HDMI output to be connected to two or more HDTV displays. It is a flexible distribution hub that can accommodate multiple displays when two or more HDMI Splitters are connected to create a large distribution.
Features:
- Connects two or more HDTV displays at the same time to the same video source
- Supports both Audio and Video Signals.
- Allows simultaneous display
- Supports 480i/576i/1080i/480p/576p/720p/1080p resolutions
- Supports HDCP Compliant devices
- Outputs can achieve long distance transmission of HDMI signal up to 15 meters.
Specifications:
- HDMI Source Input Port/ 8 x Display Device Output Port.
- Single Link Range: 1920x1200, 1080p
- Vertical Frequency Range: up to 165 MHz
- Video format supported VGA: 640x480, 800x600, 1024x768, 1920x1200
- Video format supported DTV/HDTV: 480i/576i/1080i/480p/576p/720p/1080p
- Interlaced (50&60Hz): 480i/576i/1080i
- Progressive (50&60Hz): 480p/576p/720p/1080p
- Operating Temperature: 0 degree C to 70 degree C
- Operating Humidity: 10% to 85% RH (no condensation)
- Storage Temperature: -10 degree C to 80 degree C
- Storage Humidity: 5% to 90% RH (no condensation)
- Power Supply DC 5V 2A
- HDCP Compliant
|
