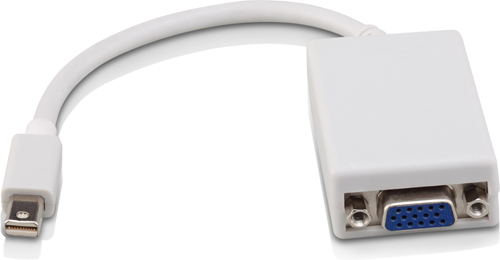

Mini Display Port to VGA Adaptor
partnumber: MDA-1002A
The Mini Display Port to VGA signal format converter seamlessly connect next generation Display Port based Mac Book, Mac Book Pro, or Mac Book Air with a Mini Display Port to conventional VGA displays, such as CRT, LCD monitors and projectors. Mini Display Port offers a unified, scalable, and cost effective interface for embedded and external display applications. It not only has an elegant appearance with the white color but also brings much convenience with its small size. It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.
Features: This Mini Display Port to VGA converter has many features that enable it to perform in a superior manner. This adaptor enables you to connect several computers with a display port easily. You can get more desktop area to have more visible applications at one time. Among those features you will find:
- Mini Display Port 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes
- Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
- Supports up to 1080p, 1920 x 1200 reduced blanking video resolution
- ID pass-through from PC source to display
- Read Spectrum (de-spreading) for EMI reduction
- Automatic sink detection
- With power standby mode operation initiated based on sink detection status
- Power operation – Active 400mW, standby mode 15mW
Note: For few display cards, the image would not appear until the PC enters into Windows from DOS at the time of restarting.
SPECIFICATIONS:
| Signal Inputs/Output |
| Maximum Single Link Range |
1920X1200, 1080P |
| Video format supported |
| VGA |
Max to1920x1200 |
| Operating Frequency |
| Vertical Frequency Range |
50/60Hz |
| Video Amplifier Bandwidth |
162MHz |
| Mechanical |
| Weight(Net) |
28g |
| Warranty |
| Limited Warranty |
1 Year Parts and Labor |
| Environmental |
| Operating Temperature |
0 ℃ to +70℃ |
| Operating Humidity |
10% to 85 % RH (no condensation) |
| Storage Temperature |
-10℃ to +80℃ |
| Storage Humidity |
5% to 90 % RH (no condensation) |
| Power Requirement |
No external power needed |
| Accessories Adapter |
| User Manual |
English Version |
|
