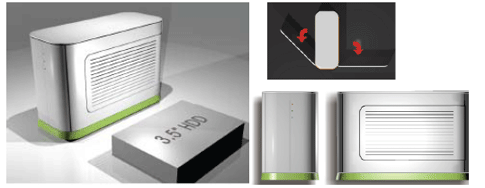

"USB Dual Bay SATA Enclosure with RAID"



USB Dual Bay SATA Enclosure with RAID - # VUS003


[ For OEM projects Only ]

Introduction:

The USB Dual Bay SATA Enclosure with RAID supports both full and high speed USB modes. It's high performance FIFO manager and high speed architecture exceeds the output capability of today's PCs, ensuring it keeps in pace with the PC's continuous speed increase.

The SATA interface allows storage products to follow the current transition of hard disk drives, from parallel ATA to Serial ATA.

The VUS003 supports RAID 1 Mirroring,writes the same data to both disks,that data may be recovered in the event of one drive failing

The embedded ARM processor enables the product to differentiate and customize. The firmware is field upgradeable, allowig products to be updated with the latest software.

Features:

  • 480Mbps USB 2.0 high speed Link
  • 18KB RAM USB Data Cache
  • Dual SATA Port allows connection of 2 SATA I/II drives with hardware mirroring for ultimate performance
  • Supports SATA II port multiplier specification
  • Comes complete with field upgradeable firmware that supports USB mass storage protocol (supported as standard by Windows and Apple Mac).

Specifications:

  • Two SATA II interface
  • One USB interface: Comply with high-speed USB IF
  • Front LED: power, HDD activity, RAID status
  • Rear I/O: 1xUSB, reset button, power switch, and DC power jack
  • File system: FAT32, NTFS
  • Operating Environment: 5-35 C; 20-80% humidity
