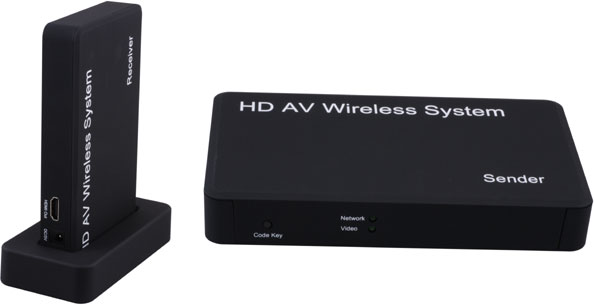

HD AV Wireless Extender
partnumber: VHE-1500
The device can be wirelessly connected from an HD source device to an HD display device at home. With the device, you can enjoy HD video anywhere at home. In addition, you are relieved from the layout of cables and installation of a set-top-box and thereby reduce relevant expenses.
Features:
- Easy to Use: Install in seconds, no need of setting.
- Transmission range in the vacancy indoor environment 30m.
- Supporting the video HDMI interface at the maximum of 1080P/60 Hz.
- Supporting HDCP1.2 protocol.
- Supporting the EDID function.
- Supporting the CEC function (for the receiving and display devices).
- Supporting the IR extension transmission function.
- Transmission power 12 dBm.
- Supporting the point-to-point transmission function currently which can be expanded to the point to multi-point or multi-point to multi-point transmission function.
- Supporting the AES128-bit image encryption Function.
- Supporting the reverse back-transmission channel at the maximum rate of 100 kbs.
- Supporting OSD display.
- Supporting WHDI 1.0 specification.
Technical Specifications:
Video formats supported |
TV:1080p,1080i,720p,576p,480p
PC:VGA(640×480),SVGA(800×600), XGA(1024×768),SXGA(1280×1024) |
Audio formats supported |
PCM,DTS,DOCBY DIGITAL |
RF communication system |
MIMO |
Modulation mode |
OFDM |
Maximum transmission power |
12dBm |
Image transmission power |
≥30m |
Image delay |
<1 ms |
Transmission/receiving antenna mode |
Built-in |
Operating frequency |
5.1~5.9GHz |
IR carrier modulation
frequency supported |
38KHz |
Operating power supply |
100~240V AC mains,5V 2A DC power |
Storage temperature |
-20~80℃ |
Operating temperature |
-10~50℃ |
Note: The working frequency band may vary with the relevant laws in different countries or regions.
Packing List:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- HD wireless video Sender×1
- HD wireless video Receiver×1
- Base×2
- External infrared emitter (IE)×1
- Power supply 5V/2A×2
 INSTALLATION AND USE:
It is recommended to place a Sender and a Receiver vertically or horizontally at the same time during installation. If the Sender and the Receiver are placed across each other, for example the Sender is put vertically and the Receiver is placed horizontally, the image transmission distance and effect are impacted.

SPECIFICATIONS:
Sender |
Transmission Frequency |
5.1~5.9GHz |
Frequency stability |
±4PPM |
Bandwidth |
40MHz |
Transmission Power |
≥12dBm |
Receiving Sensitivity |
≤-75dBm |
System latency |
≤1ms |
Sending/receiving channel |
4 channels for sending/1 channel for receiving |
HD video protocol |
HDMI |
HD video encryption protocol |
HDCP 1.2 |
Unobstructed Effective Range |
≥30m |
Power Supply |
5V DC |
Consumption Current |
2A±10% |
Dimensions(W×D×H) |
148×97×18mm |
Approx. Weight |
110g |
Receiver |
Receiving Frequency |
5.1~5.9GHz |
RF communication system |
MIMO |
Modulation mode |
OFDM |
Frequency stability |
±4PPM |
Bandwidth |
40MHz |
Transmission Power |
≥15dBm |
Receiving Sensitivity |
≤-65dBm |
System latency |
≤1ms |
Sending/receiving channel |
1 channel for sending/4 channels for receiving |
HD video protocol |
HDMI |
HD video encryption protocol |
HDCP 1.2 |
Unobstructed Effective Range |
≥30m |
Power Supply |
5V DC |
Consumption Current |
2A±10% |
Dimensions(W×D×H) |
148×97×18mm |
Approx. Weight |
110g |
Operating Temperature |
-10℃ ~ 50℃ |
Storage Temperature |
-20℃ ~ 80℃ |
Operating Humidity |
15 ~ 85%RH |
|
