Audio Video 10 Port Extender

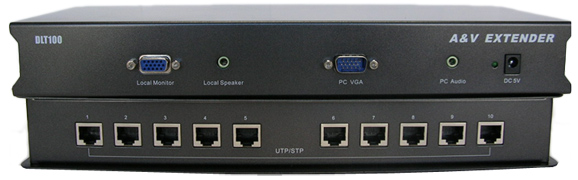

VDT-1100B 10Port Audio/Video Extender

The 10Port Audio Video Extender uses a local transmitter VDT-1010BT (DLT100), and a remoter receiver VDT-1010BR (DLR10) to extend the transmission distance up to 150M via Cat 5 / 5e / 6 UTP/STP cable.

Key Features:

  • Compact desktop size transmitter and receiver
  • Works with Cat5, Cat5e, Cat6 Ethernet cable
  • Transmission distance of up to 500 feet (150m max.)
  • Easily installs and makes adjustment for video signal set-up
  • Compatible with DOS, MS Windows, Linux, Unix and Netware
  • No software installation required
  • Supports high VGA resolution up to 1280X1024
  • Power LED and data transmission LED indication
  • Simple and easy use with PS/2 mouse and PS/2 keyboard
  • Connection between transmitter with a standard Network cable

Specifications:

  • Connector Input : HD-15F x 1, 3.5 Phone Jack x 1; 8P8C Jack x 1
  • Connector Output: HD-15F x 1, 3.5 Phone Jack x 1 & 8P8C x 10; HD-15F x 1, 3.5 Phone Jack x 1
  • Max Resolution - 1280 x 1024
  • Video Bandwidth - 150MHz
  • Horizontal Frequency - 30-100KHz
  • Vertical Frequency - 43-120 Hz
  • Transmission Distance
    . PC to VDT-1100BT (DLT100): 7.5m
    . VDT-1100BT (DLT100) to Local Monitor: 7.5m
    . VDT-1100BT (DLT100) to VDT-1010BR (DLR10): 5-150m
    . VDT-1010BR (DLR10) to Remote Monitor: 7.5m
  • Case Design - Metal Case
  • Power - DC5V/6A
