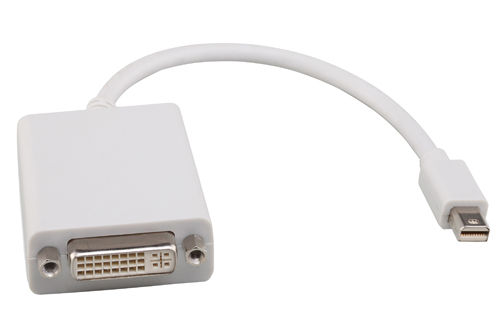

Mini Display Port to DVI Adaptor
partnumber: MDD-1002A

The Mini Display Port to DVI signal format converter seamlessly connect next generation Display Port based Mac Book, Mac Book Pro, or Mac Book Air with a Mini Display Port to conventional DVI displays, such as CRT, LCD monitors and projectors. Mini Display Port offers a unified, stable, and cost effective interface for embedded and external display applications. It not only has an elegant appearance with the white color but also brings much convenience with its small size. It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.

Features:

  • Support Mini Display Port 1.1a input and DVI output.
  • Support DVI highest video resolution 1080p.
  • Support DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
  • Support DVI 12bit per channel (36bit all channel) deep color.
  • Powered from Mini Display Port source.

SPECIFICATIONS:

Signal Inputs/Output
Input Video Signal 5 Volts p-p (TTL)
Maximum Single Link Range 1920x1080P
Output Video DVI
Input/Output Connector Input: Mini Display Port Male 20pin
Output: DVI Female (24+5)
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Warranty
Limited Warranty 1 Year Parts and Labor
Environmental
Operating Temperature 0 ℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +80
